Panorama P4 and P6 are incredible keyboard controller instruments with the most intuitive workflow, you have ever seen.

Spectacular and deep integration with Bitwig Studio, Cubase, Logic Pro, MainStage, Reaper, Reason and Studio One puts the spotlight on performance and creativity. Keyboard and pads are dynamic, sensitive and balanced carefully with a solid feel that allows for complete expression. All this, combined with 93 real-time controls available at any one time, makes Panorama the definitive keyboard controller for Bitwig Studio, Cubase, Logic Pro, Reason and Studio One.

SPECIFICATIONS

Keyboard

• 49 or 61 note semi-weighted, velocity-sensitive
• keyboard w/aftertouch
• 5 velocity curves plus fixed
• Pitch bend & Modulation assignable wheels
• Octave shift buttons
• PB1/2 buttons
• 4 keyboard zones programmable with controller filters and program changes
• 5 keyboard maps store all settings



Preset Controls


• 16 encoders
• 9 45mm faders
• 10 assignable LED buttons
• 11 dedicated transport buttons
• 20 preset locations store all settings including links to keyboard, pad and F-keys maps



Pads


• 12 pads with velocity and pressure sensitivity
• 7 velocity curves
• Note-learn,
• Scale mode with 30+ scales and interval setting
• Velocity spread functions spreads the selected pad assignment over all 12 pads, at different velocity levels
• Transpose and Octave shift in both pad-map and scale mode
• Pads freely assignable in Reason mode
• Load or Save to any of 20 pad maps



 F-keys


• 11 assignable Function Keys (accessible using shift and transport keys)
• Load or Save to any of 10 F-Keys maps
• F-Keys assignable even in 3 Reason modes



System Requirements


USB Class compliant, no driver is needed for:
Apple iOS, Apple OSX
Windows XP, or higher
Linux (MIDI driver software required)



Nektar DAW Integration

Mac OS X 10.7 or higher
Windows Vista, 7 & 8 or higher



Additional


• 100 mm ALPS motorized fader*
• 6 dedicated assignable navigation buttons
• ASCII/QWERTY macros assignable to buttons and pads
• 3.5” high-resolution TFT display provides incredible navigation and user visibility
• Nektar DAW Integration
• Presets and setup files for major DAWs and VIs



Connections


• Expression pedal 1/4″ jack input (pedal not included)
• Foot switch (sustain) 1/4″ jack input (pedal not included)
• MIDI output
• USB port for communication with computer
• USB Micro B connector for extra and external power*

*Two USB ports or external USB power supply required to power entire unit. One USB port powers entire unit with the exception of the motorized fader



Weight & Dimensions

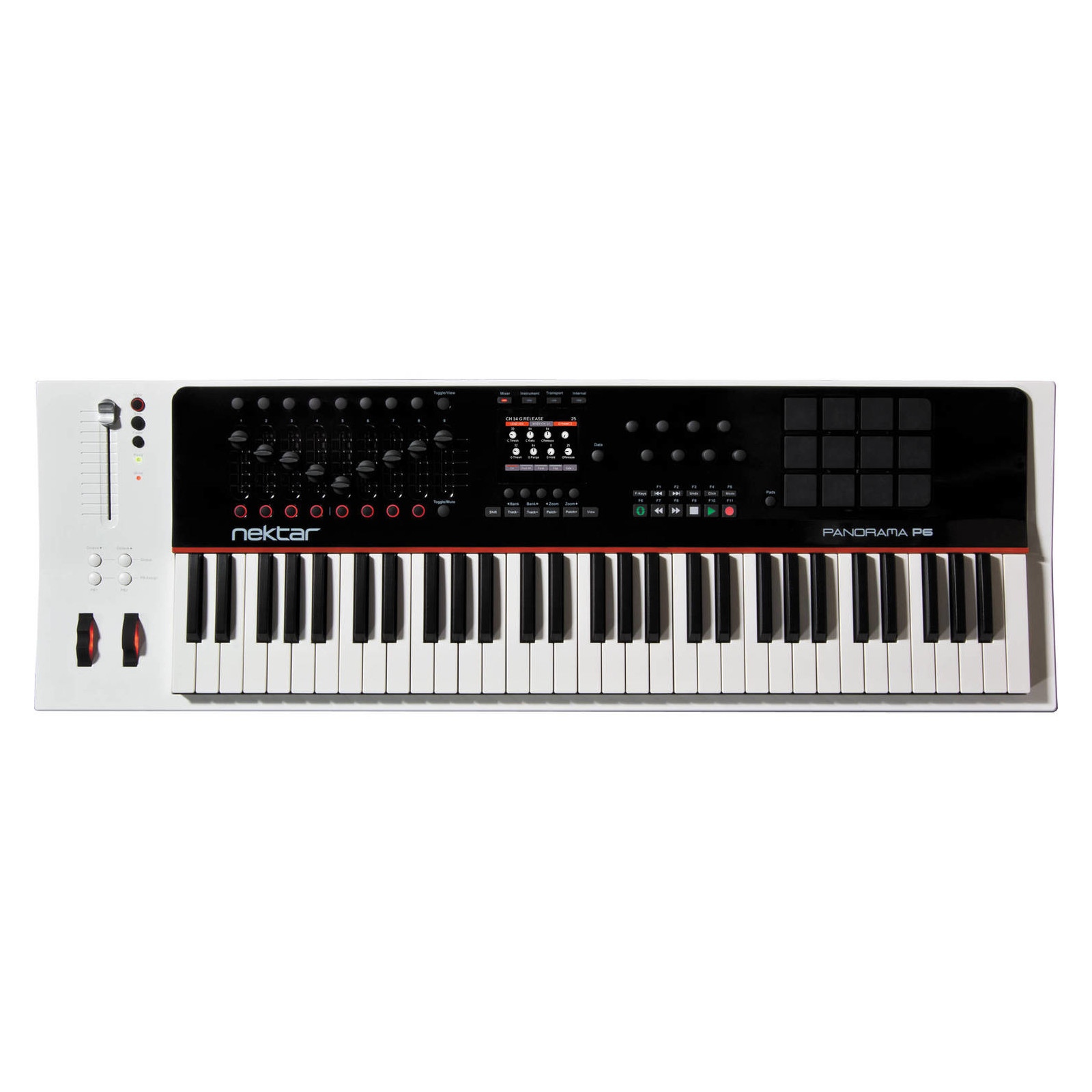

Panorama P6
Dimensions: 39 5/8″(L) x 13″(D) 3 6/8″(H)
Weight: 17 Lbs
