FBT Vertus 1000 CS

Descrição

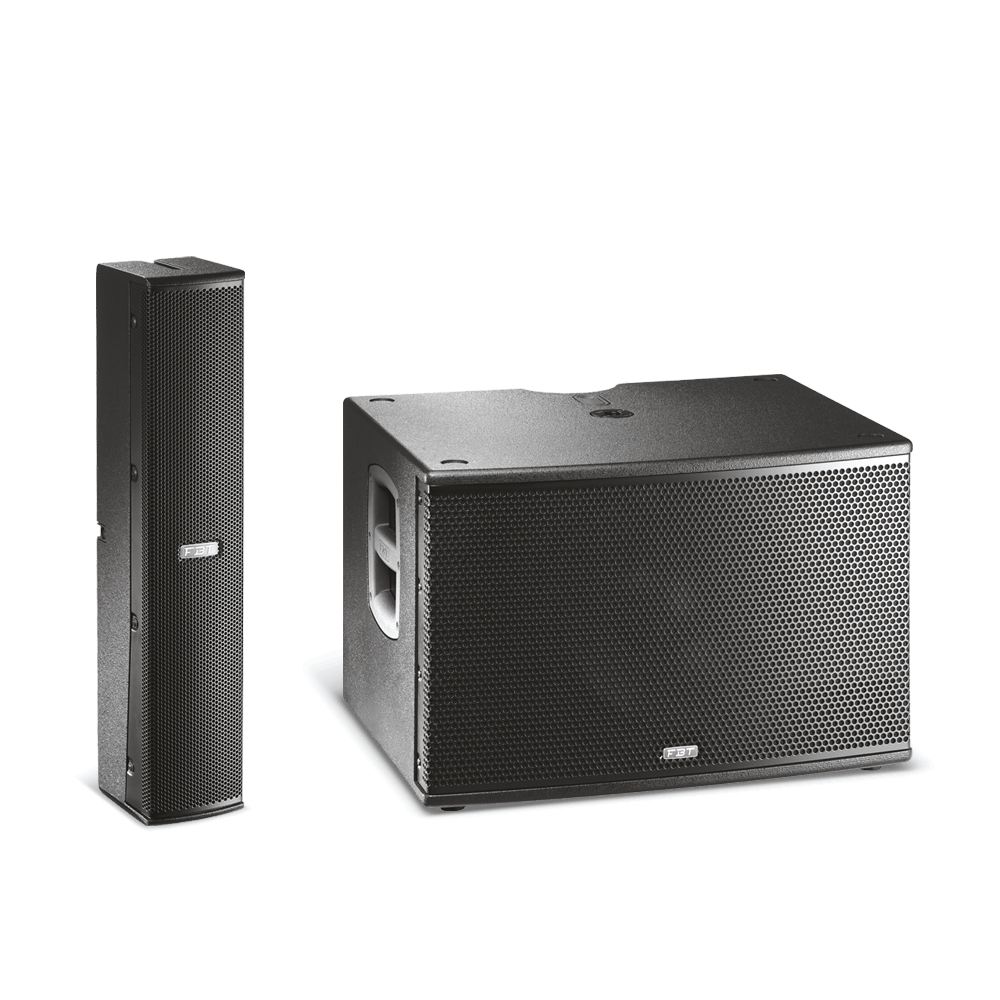

COMPACT LINE ARRAY INTEGRATED SYSTEM 600W + 400W RMS 129 DB SPL

• Modular design allowing two systems to be configured as one single solution via optional accessories

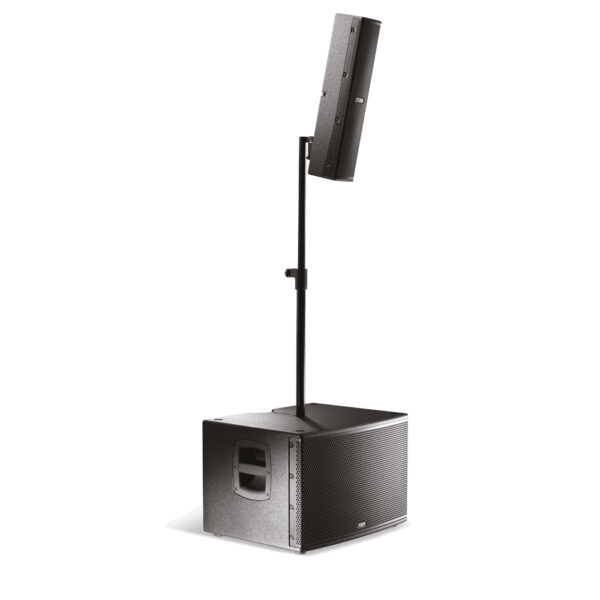

• Bass reflex stackable subwoofer in a birch plywood enclosure with diecast aluminum handle and rubber inserts, plus M20 support and a custom pole-mount solution facilitating adjustable height and vertical aiming

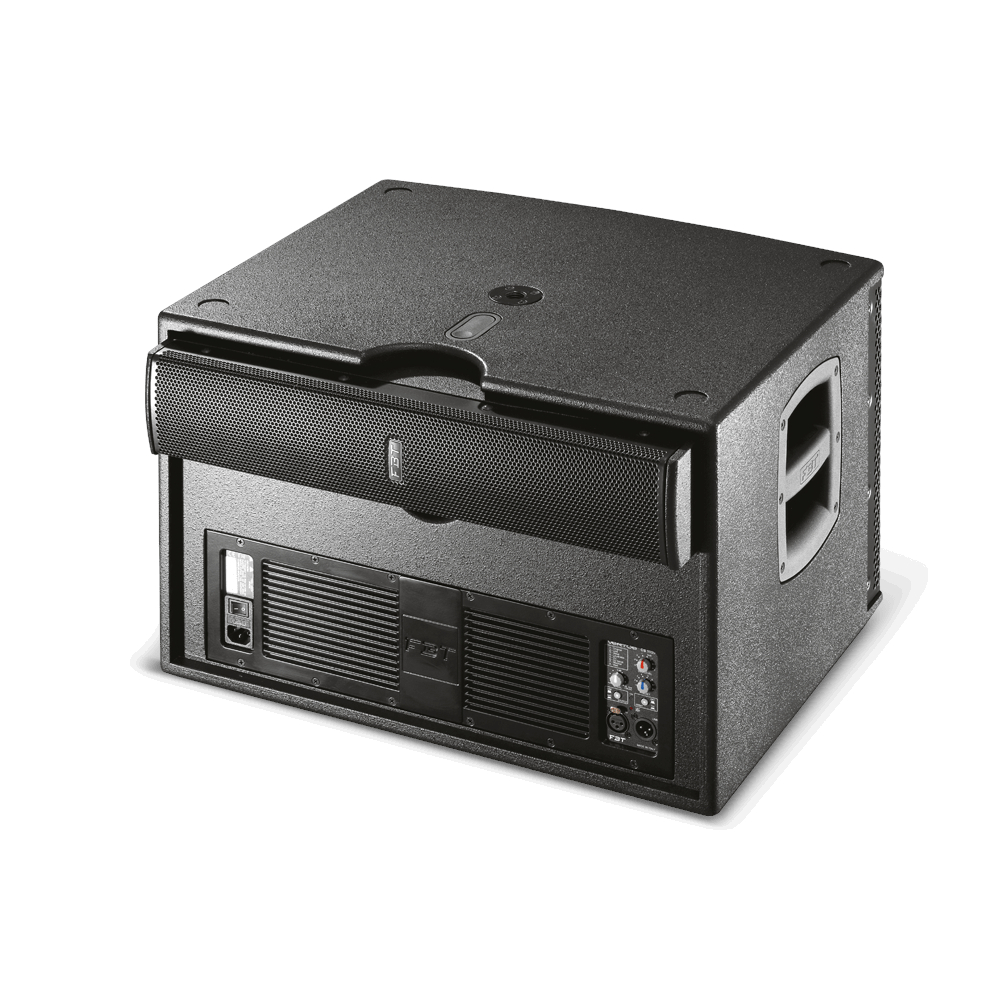

• The satellite and pole are fully integrated into the subwoofer cabinet, where a push button system locks the satellite in place for transportation
• The satellite is equipped with a coupling system for accessories which allow the extension of the length of the line array, positioning one atop the other. Alternatively, the same system allows the satellite to be permanently wall-mounted.
• Ideal for both live applications and fixed installations
• Easily expandable to a total power of 8.000W peak (via a stereo system consisting of 4 x VERTUS CS1000, positioned two per side)

• 2-way speaker system
• Subwoofer with a custom 12” (320mm) long excursion speaker with a 2.5” (64mm) voice coil
• 6 x full-range, 3” (70mm) neodymium high efficiency custom woofers with 0.75” (20mm) voice coils
• Frequency response of 40Hz to 20KHz
• Onboard Class-D, switch-mode amplifier delivering 600Wrms + 400Wrms for LF and HF respectively
• Built-in DSP with eight presets to suit every application
• Variable volume between -4.5 / + 5 dB in 8 steps

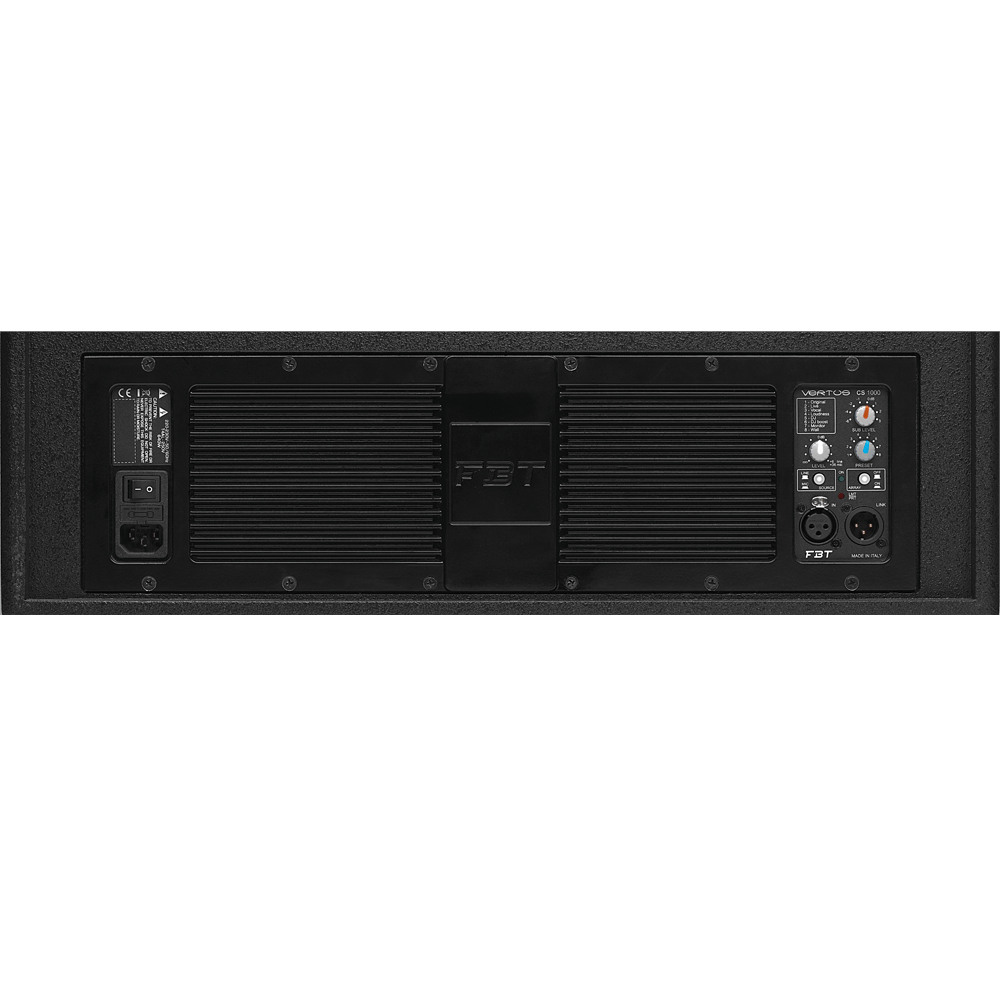

• Control Panel with master volume, presets, satellite volume, HPF, and LED status
• Input and link via XLR and Neutrik SPEAKON for satellite connection
• Dispersion 110 ° (H) x 30 ° (V)

• BUILT-IN AMPLIFIER LF/HF: 600/400 W RMS
• BUILT-IN AMPLIFIER PEAK LF/HF: 1200/800 W
• FREQUENCY RESPONSE: 40Hz – 20KHz -6dB
• LOW FREQUENCY WOOFER: 12 – 2.5 coil inch
• HIGH FREQUENCY DRIVER: 6 x 3 – 0.8 coil neodymium inch
• MAXIMUM SPL CONT/PEAK: 125/129 dB
• DISPERSION: 110° x 30° H x V
• INPUT IMPEDANCE: 22 Kohm
• CROSSOVER FREQUENCY: 180 KHz
• AC POWER REQUIREMENTS: 640 VA
• INPUT CONNECTOR: XLR with loop
• POWER CORD: 5/16.4 mm/inch
• NET DIMENSION (WXHXD): satellite 105x530x120 / 4.13×20.86×4.72 Subwoofer 565x373x450 / 22.24×14.68×17.71 mm/inch
• NET WEIGHT: Satellite 3.5/7.71 Subwoofer 22.4/49.38 kg/lb
• TRANSPORT DIMENSION (WXHXD): 695x473x580 / 27.36×18.62×22.83 mm/inch
• TRANSPORT WEIGHT: 33.5/73.85 kg/lb
