Studiomaster Line Array Direct 121

Descrição

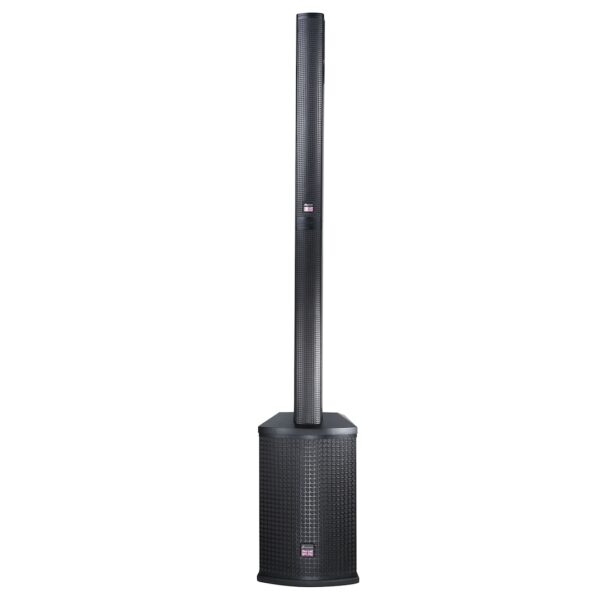

DIRECT – Compact Vertical Array

The self-powered all-in-one solution is an ultra-compact, powerful vertical array system for versatile use. DIRECT includes 6 x 3″ mid frequency transducers for perfect clarity of instruments and voice. The 1″ high precision driver delivers dynamic and clear highs. The subwoofer is featured by one professional 10″ or 12″ transducer for well-defined lows. The on-board 4-channel mixer enables for a wide range of applications. Connecting microphones, instruments, players or even wireless bluetooth streaming sources: DIRECT is ready for it. The built-in DSP with it´s graphic display upgrades your sound to high definition audio quality.

• Self-powered 3-way system for high definition sound (122 dB max.)
• 6 x 3″ plus 1 x 1″ precision transducers
• 120° x 30° ultra wide sound coverage (HxV)
• 10″ and 12″ subwoofers for deep and powerful lows
• Class-D amplifier modules for low distortion and excellent sound, powerful SMPS (100 V – 240 V)
• Extensive 4-channel mixer. 2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input. 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access
• Powerful 24-bit DSP with display, ONE CONTROL encoder, storable presets, digital gain control, high-pass filter, delay, dual-channel limiter and equalization
• Digital delay for delay zones up to 100 m (in steps of 0.25 m)

Mixer – analogue
Inputs – 4 Channels (2x Mic/Line, 1x Hi-Z, 1x RCA & Bluetooth)
Input connectors – 2x XLR jack combo, 1x UNBAL TRS Jack, 1x RCA stereo
Input impedance – 10 k Ohms Balanced, 470 k Ohms Unbalanced
Output connector – 2x Line link XLR, 1x Main out XLR (pre DSP)

Amplifier:
Rated power – 2 x 300 W RMS
Frequency range – 20 Hz – 20 kHz
DSP connection – 24 bit (1in-2out)

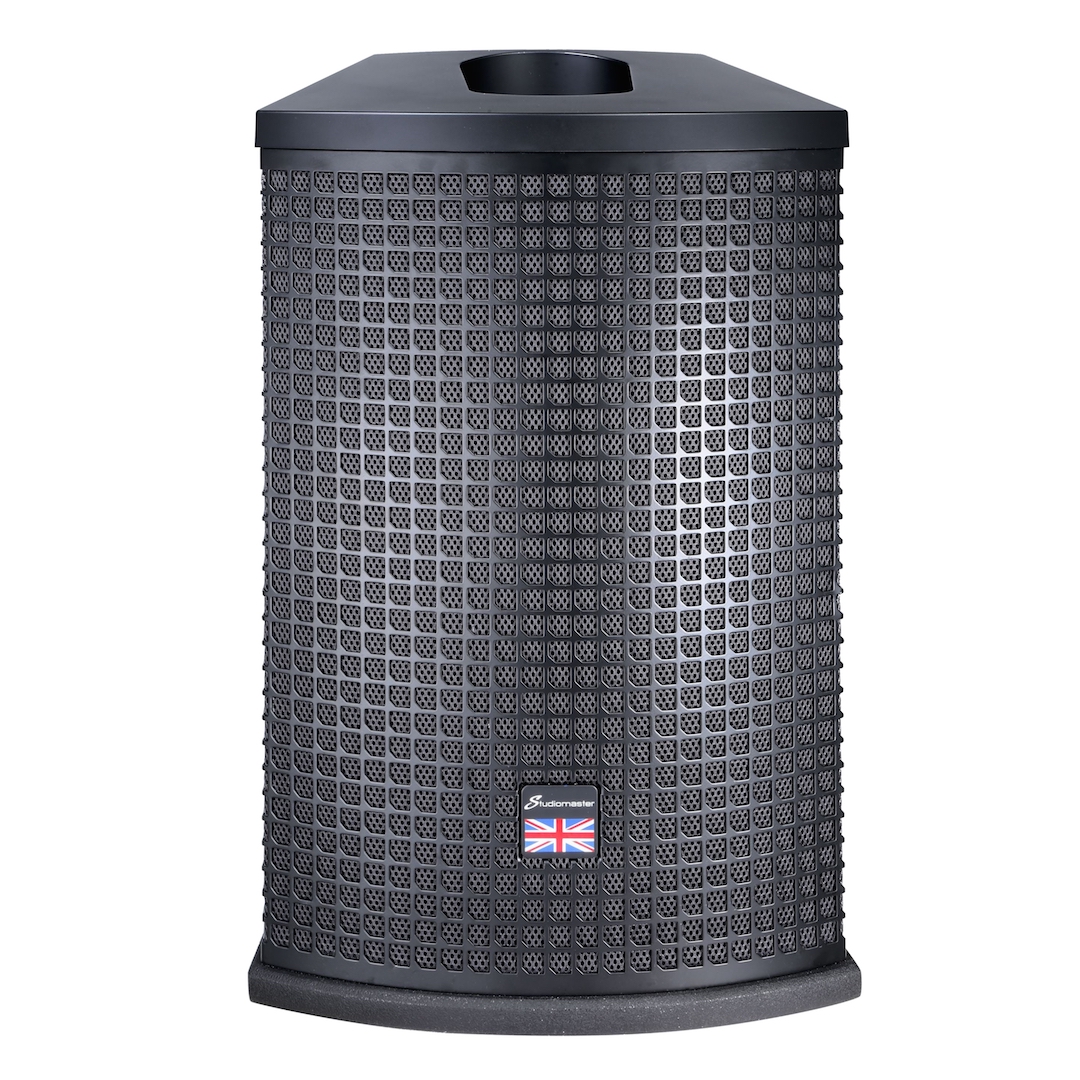

Subwoofer:
Speaker type – 1 x 12″ transducer
Rated Power – 300W (RMS)
Rated Impedance – 4Ω
Dimensions (WxHxD) – 358*616*447mm
Net Weight (kg) – 23kg
